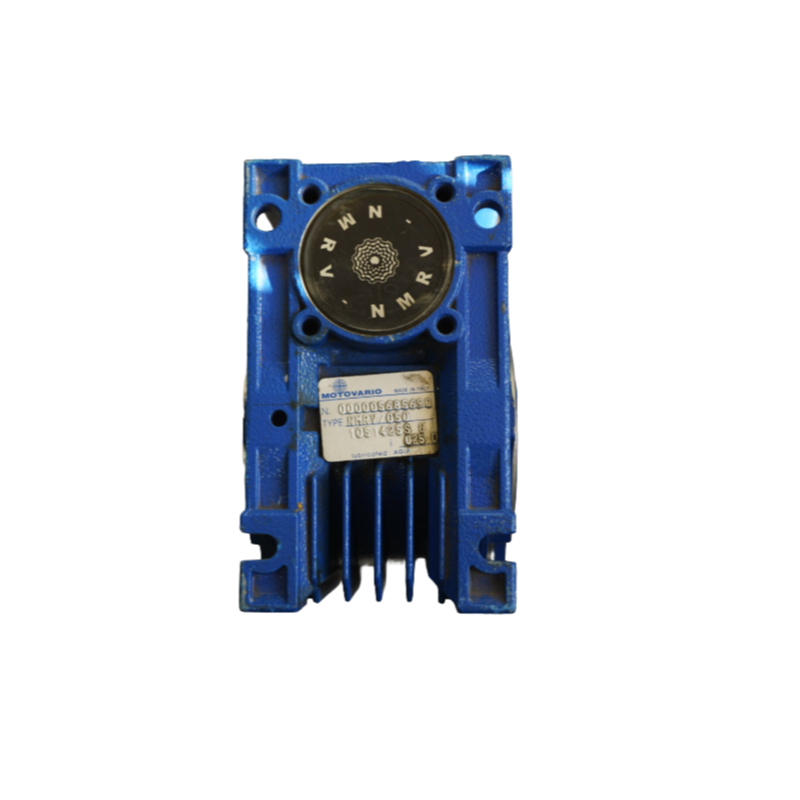

Motovario NMRV/050 Worm Gear Reducer i=25

Motovario worm gear reducer size 050. The die-cast aluminum housing combines lightness with corrosion resistance (great for the food or light industry). Factory-filled with synthetic oil – completely maintenance-free (lifetime lubrication). Universal mounting thanks to holes on every side of the casing.

Technical Data

• Ratio ($i$): 25
• Output hollow shaft diameter: Standard 25 mm H8
• Output torque ($M_2$): Max approx. 70-85 Nm
• Housing material: Aluminum alloy
• Weight: approx. 3.5 kg (gearbox only)
• Lubrication: Synthetic oil ISO VG 320 (0.15 liter)

Typical Applications

• Belt conveyors in assembly lines.
• Mixers in tanks up to 500-1000 liters (thin liquids).
• Sliding gate drives (medium weight).
• Woodworking machinery (feed systems).
• Central heating furnaces (screw feeders for fuel – eco-pea coal/pellets).
