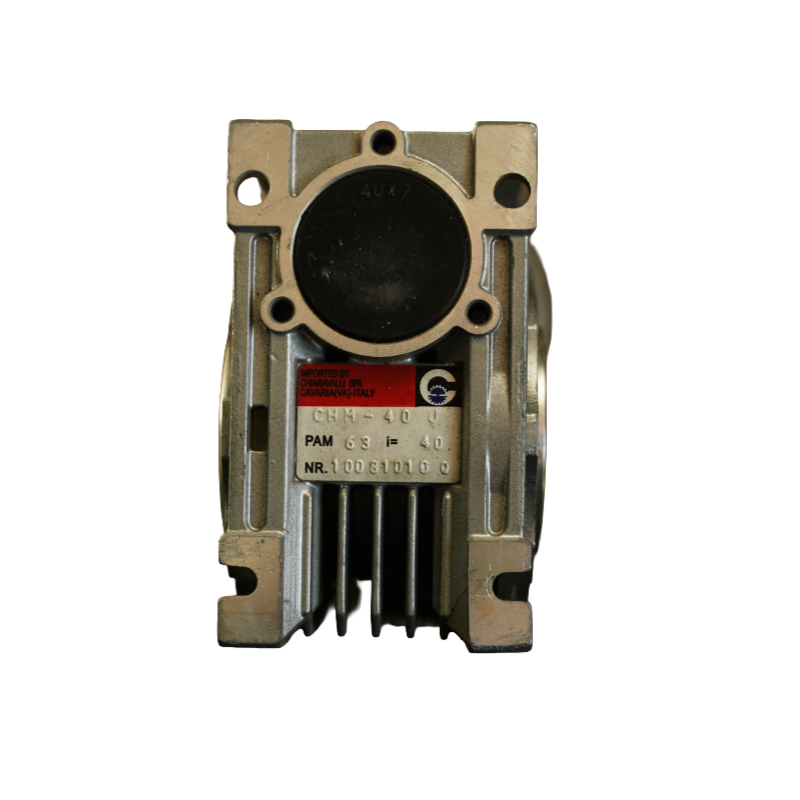

Chiaravalli Model: CHM-40U (Universal Worm Gearbox) Input Flange: PAM 63 (B5)

The Chiaravalli CHM 40 is a versatile worm gear reducer featuring a lightweight, die-cast aluminum housing. This unit is configured with a PAM 63 motor flange (11 mm input shaft), making it compatible with standard IEC 63 electric motors. Designed for quiet operation and efficiency, it comes factory-filled with synthetic oil for a maintenance-free lifespan—no oil changes required. Ideal for industrial automation and machinery building.

Technical Specifications

• Body Material: Die-cast Aluminium (Lightweight & Corrosion resistant)
• Output Shaft Type: Hollow bore
• Output Shaft Diameter: 18 mm (Standard)
• Input Configuration (PAM 63 B5):
  • Motor Shaft Hole: 11 mm
  • Flange Diameter: 140 mm
• Gear Ratio (i): 40:1
• Lubrication: Synthetic Oil (ISO VG 320), Lifetime / Maintenance-free
• Mounting: Universal (multiple mounting positions)
• Weight: Approx. 2.3 kg

Common Applications

• Light conveyor belts and roller systems
• Packaging machines and labeling units
• Food industry mixers (due to aluminum housing cleanliness)
• Gate automation and opening systems
• Screw dispensers/feeders (e.g., for pellet, granules)
