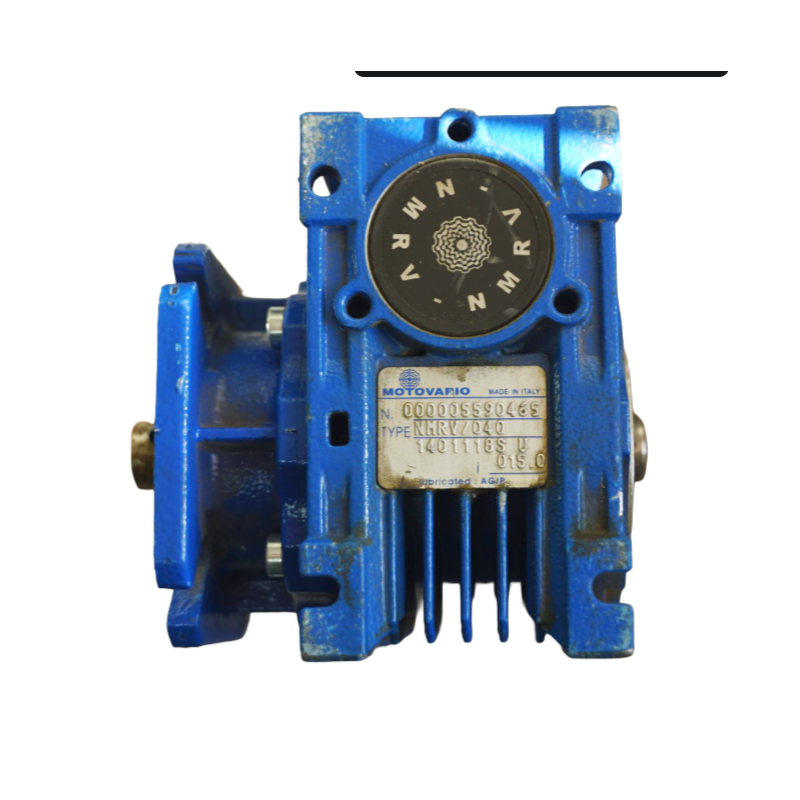

Motoreduktor ślimakowy Motovario NMRV/040 0901118S U

Motovario NMRV 040 Worm Gear Reducer – 0901118S U Ratio i=15

Gearbox in a universal aluminium housing (type U) adapted for mounting in any position. Ratio i=15. The device is factory-filled with synthetic oil for the entire service life, requiring no oil change or maintenance (maintenance-free). It is designed for applications requiring high torque at relatively low rotational speeds. Thanks to the universal mounting version (U), it can be installed in various positions, increasing flexibility in drive system design.

Technical Data

• Manufacturer: Motovario
• Model: NMRV 040
• Type: Worm gearbox
• Ratio (i): 15
• Output shaft diameter: 18 mm (hollow shaft)
• Motor connection (PAM): Standard for size 040
• Body material: Aluminium
• Lubrication: Synthetic oil (maintenance-free)
• Weight: approx. 2.3 kg
• Mounting: Universal (mounting holes in the body)

Applications

• Conveyor belt and roller conveyor drives
• Mixers and process tanks
• Solid fuel dispensers (eco-pea coal, pellets)
• Packaging and labeling machines
• Industrial automation (gates, lifts)
