Obudowa łożyska SNR FL204

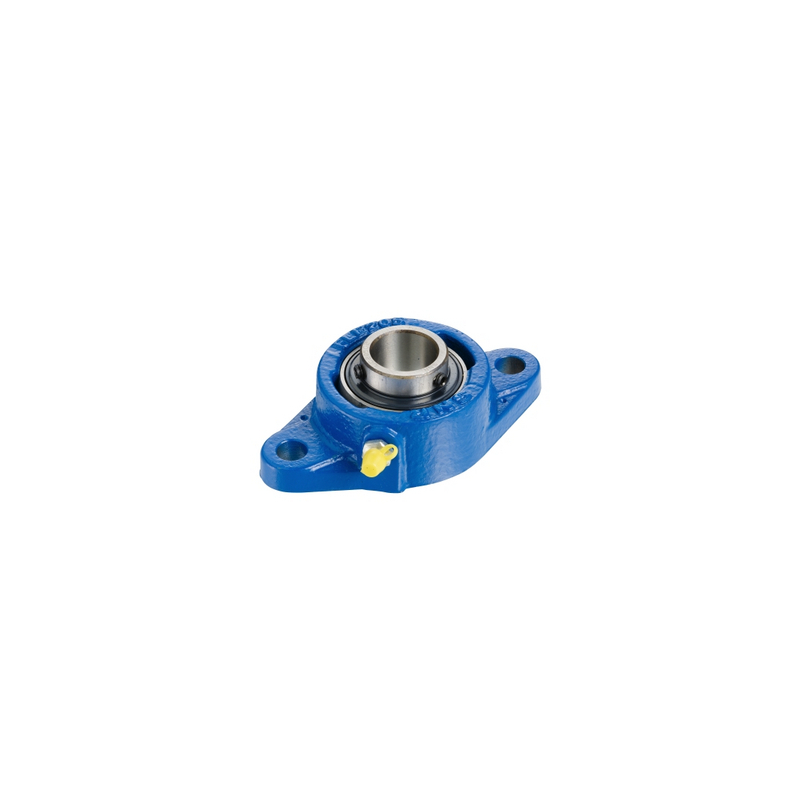

SNR FL204 – Bearing Housing (2-Bolt Flange Unit)

The SNR FL204 is a cast-iron 2-bolt flange bearing housing designed to work with self-aligning insert ball bearings such as UC204. It provides stable shaft support, high mechanical strength and easy installation, suitable for both light and medium-duty industrial applications.

Technical Data

• Shaft diameter – 20 mm
• Overall length – 113 mm
• Width – 60 mm
• Housing height – 25.5 mm
• Flange height – 11 mm
• Mounting hole spacing – 90 mm
• Mounting hole diameter – 12 mm
• Weight – 0.43 kg
