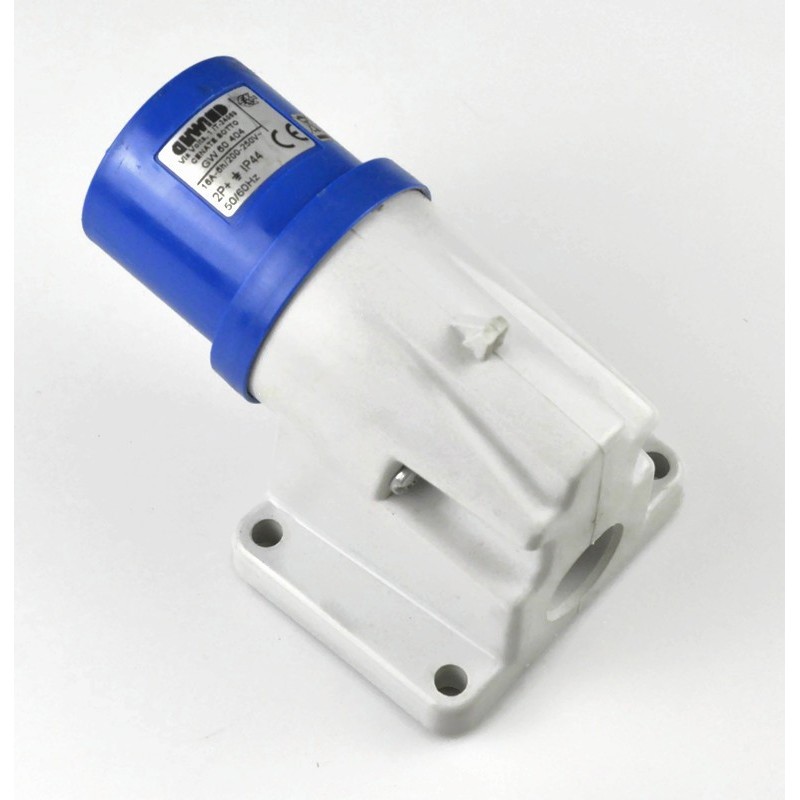

GEWISS GW60404 90° ANGLED SURFACE MOUNTING INLET - IP44 - 2P+E

GEWISS GW60404 90° ANGLED SURFACE MOUNTING INLET - IP44 - 2P+E 16A 200-250V 50/60HZ - BLUE - 6H - SCREW WIRING

Type: 90° angled surface-mounting inlet (IEC 309)
Rated current: 16 A
Voltage: 200–250 V AC, 50/60 Hz
Pin configuration: 2P + E (2 poles + earth)
Protection degree: IP44 (splash-proof)
Color: blue (230 V standard)
Key position: 6 h (prevents incorrect connection)
Mounting: surface-mounted, screw-type terminals
Operating temperature: –25 °C to +55 °C
Mechanical resistance: IK08
Cable cross-section: 1–2.5 mm² (flexible) / 1.5–4 mm² (rigid)
