Photogrammetric scanning is a technique for creating three-dimensional models of objects based on a series of photographs taken from different angles. Specialized software analyzes the images, detecting common points and then reconstructing the object's geometry in 3D. Photogrammetry is used in archaeology, geodesy, the gaming industry, film production, and design.
MoveInspect DPA–Mobile 3D Photogrammetry System for Precision Measurements AICON
The 3D scanner AICON MoveInspect DPAD is a precise measurement solution based on the digital Nikon D800 camera with a metric AICON 28 mm lens. The device offers high resolution of up to 36 MP (7360 × 4912 px) and a fast acquisition speed of up to 5 images per second, enabling efficient and accurate scanning. Thanks to the use of white flash light and a 68° field of view, the system ensures detailed geometry reproduction. The set works with a high-performance High-End class laptop running Microsoft Windows 7, allowing convenient data analysis transferred via WLAN or memory card. The scanner features DAkkS-certified calibration in accordance with VDI 2634-1 and provides very high measurement accuracy (from 2 μm + 5 μm/m). The entire system is enclosed in a compact, mobile form weighing approximately 12 kg.
DPA photogrammetry software for precise data processing
Support for advanced applications: AICON 3D Studio, PolyWorks, Geomagic Control, Geomagic Verify, Metrolog, SpatialAnalyzer
- Automatic calibration during measurement – yes
- Automatic reference alignment – yes
- Deformation and motion analysis – yes
- Adapter correction – yes
- Measurement of geometric features – yes

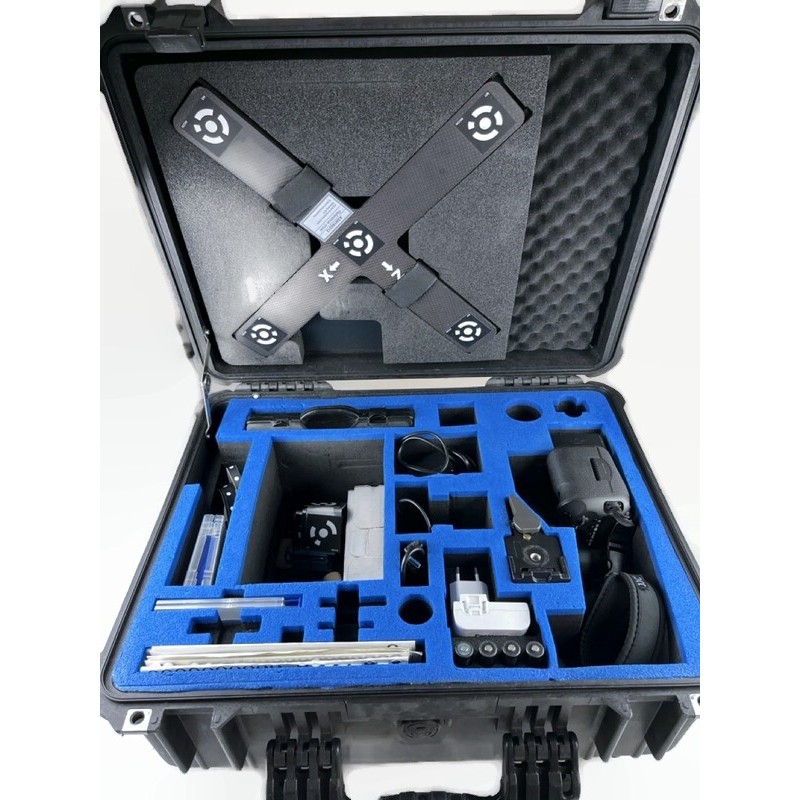

Package contents:
System components as shown in the photos, including among others:
- Digital Canon camera with metric (calibrated) lens
- Set of targets
- Self-adhesive markers
- Coded and non-coded targets
- Measurement adapters (so-called “target adapters”)
- For holes, edges, and reference points
- Special cubes (“dice”) or measurement holders
- Scale bars / length standards, calibrated reference elements for measurement scaling, together with a reference cross
- Hardware key (dongle/license)
- Transport case
- Computer not included
The set is complete and original – no components are missing, such as cables, plates, or measuring bars.
ADVANTAGES:
The DPA system is an excellent solution for industry, where precision, mobility, and ease of use are of key importance. 3D inspection includes tolerance analysis and inspection of sheet metal parts, fixtures, and large steel structures, as well as comparison with CAD models and roundness measurement of objects such as tunnels or tanks. Spatial process analysis includes deformation studies in vehicle testing, sheet metal and plastic components, as well as motion analysis of components under load.
