FESTO JMFH-5-1/2

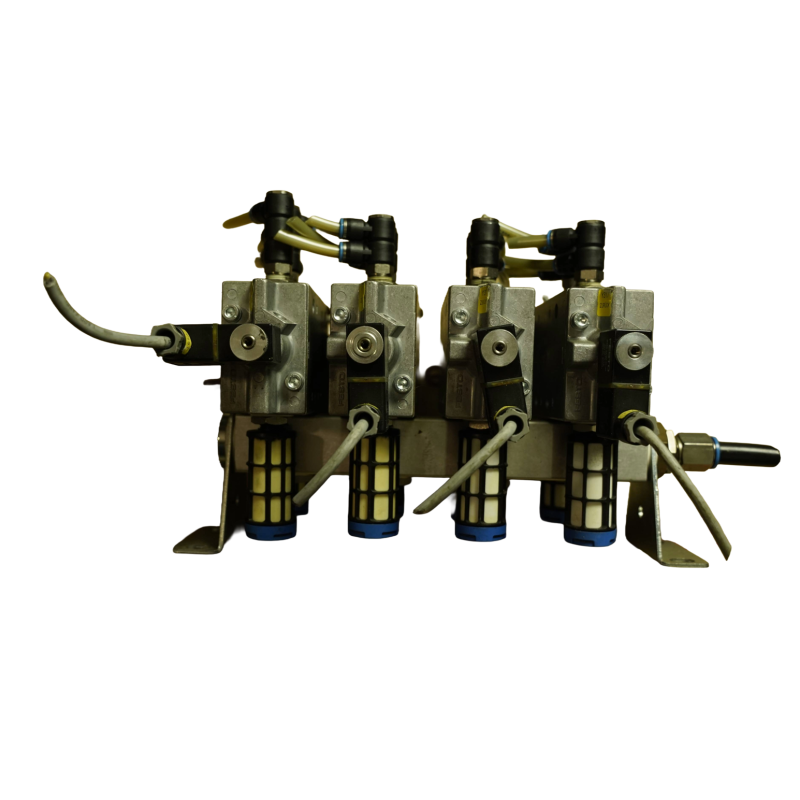

FESTO block of 4 pneumatic solenoid valves JMFH-5-1/2 (manifold + MSFG coils + U-3/8 silencers)

A set of four FESTO pneumatic solenoid valves JMFH-5-1/2 (5/2, bistable), mounted on a shared manifold base plate Each valve is equipped with 2 MSFG coils and 2 U-3/8 silencers. The module features a single common supply channel and individual outputs for each valve. The set is designed for controlling double-acting cylinders in industrial automation systems.

Set includes:

• 4× solenoid valve JMFH-5-1/2
• 8× coil MSFG 24/42-50/60
• 8× silencer U-3/8
• 1× base plate (manifold)
• Pneumatic wiring and fittings as shown in the photos

Technical data:

• Manufacturer: Festo
• Type/Category: pneumatic solenoid valve block
• Number of valves: 4 units
• Port configuration: 2 coils per valve
• Coils: 8× MSFG (2 per valve)
• Silencers: 8× U-3/8 (2 per valve)
• Base plate: Festo 4-section manifold
• Coil voltage: 24 V DC / 42 V AC
• Pneumatic ports: G1/2
• Flow rate: approx. 3000–3500 l/min
• Applications: pneumatic systems, cylinder control, machine automation
• Condition: used, fully functional – complete set as shown
• Set weight: approx. 5 kg
