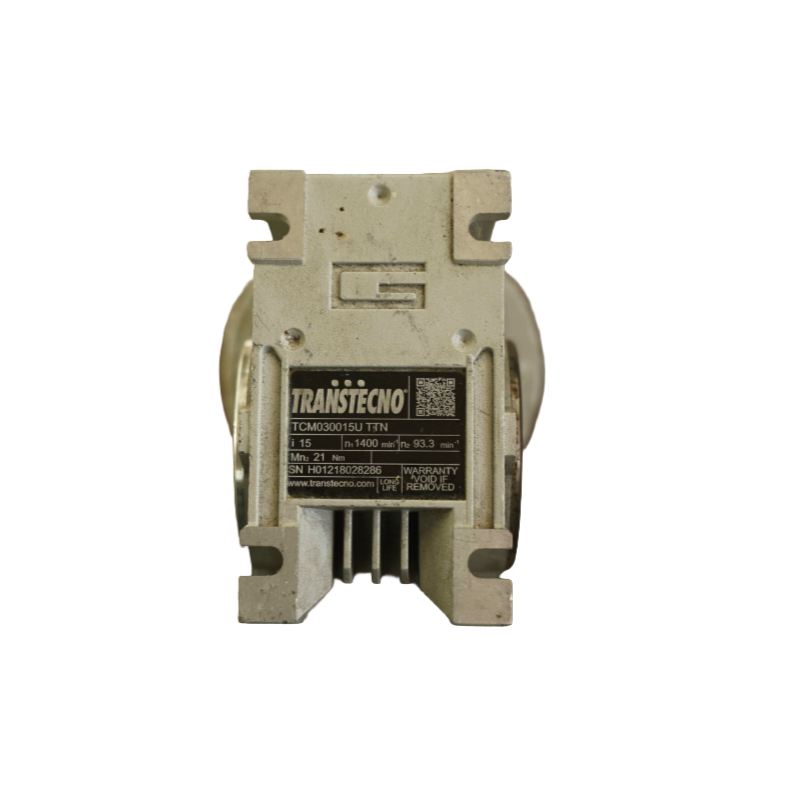

Przekładnia ślimakowa TRANSTECNO TCM030115UTTN

Transtecno TCM030115UTTN Worm Gearbox I15

Compact Transtecno worm gear unit, size 030. Aluminum housing, lightweight and corrosion-resistant. The design is a dimensional replacement for Motovario NMRV 030 or Bonfiglioli W30. The equipment is factory-filled with synthetic oil (viscosity 320), meaning no lubricant change is needed (lifetime lubrication) and it can operate in any mounting position.

Technical Data:

• Ratio (i): 15
• Output hollow shaft diameter: Standard 14 mm H8 (hollow shaft)
• Motor mounting (PAM): For i=15 in this size, it is a flange for IEC 63 B14 motor (11mm motor shaft, 90mm flange)
• Output torque: Max approx. 18-20 Nm
• Housing material: Aluminum
• Weight: approx. 1.2 kg
• Lubrication: Synthetic oil (maintenance-free)

Typical Applications:

• Light-duty belt conveyors (electronics, pharmacy).
• Fans and blowers.
• Adjustment mechanisms in packaging machines.
• Industrial shutter drives.
• Small laboratory mixers.
