Incremental optical rotary encoder EN38SC – semi-hollow shaft version

Last items in stock

Sprawdz koszty dostawy

Zamow telefonicznie
+48 730 323 233

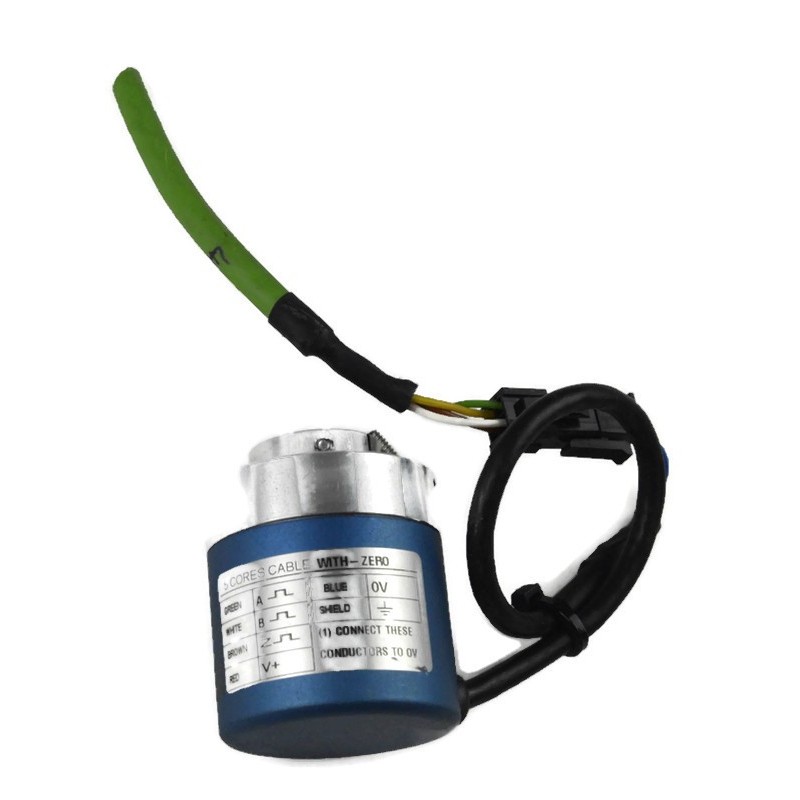

OPTICAL ENCODER EN38SC

A small, compact optical encoder, ideal for installation in confined spaces.
Measures rotation in both directions with a zero / reference pulse.
Features an aluminium flange and housing for high durability.
Sealed cable outlet – available in radial or axial versions.
Low-profile design.
Designed for motor feedback and industrial automation applications.

Specification

  • Output type: Push-Pull / Line Driver
  • Power supply: 5 ÷ 28 V DC ±10 %
  • Cable type: 5-core, shielded
  • Pulses per revolution (PPR): 5 ÷ 3600
  • Maximum rotational speed:
    • Continuous: 6,000 rpm
    • Peak: 8,000 rpm
  • Maximum output frequency: 120 kHz
  • Electrical protections:
    • Reverse polarity protection
    • Short-circuit protection on outputs
  • Optical system: Infrared emitter with photodiode receivers
  • Maximum shaft load:
    • Radial: 30 N
    • Axial: 30 N
  • Shaft diameters: Ø5 H7 / Ø6 H7 / Ø8 H7
  • Mounting hole depth: 15 mm
  • Starting torque: ≤ 1 N·cm
  • Protection degree (EN 60529): IP64
  • Operating temperature: 0 °C ÷ 70 °C
FAC002
2 Items
Used

Download

EN38

Download (403.96KB)
