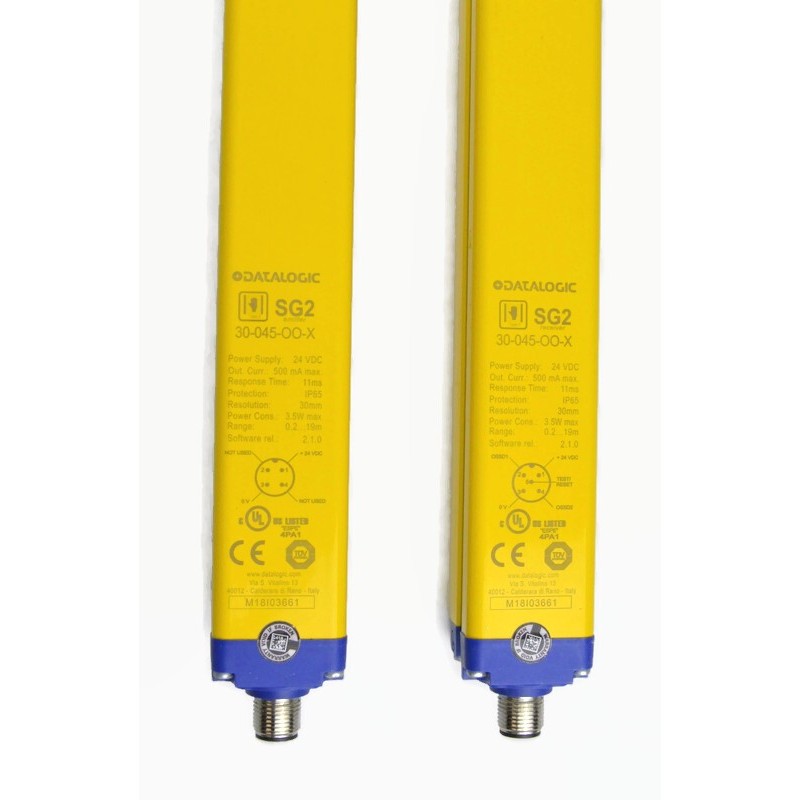

Datalogic SG2-30-045-OO-X Safety Light Curtain (Emitter and Receiver)

Datalogic SG2-30-045-OO-X Safety Light Curtain (Emitter and Receiver)

Type: Safety Light Curtain
Device Type: Type 2 according to EN 61496-1
Resolution: 30 mm
Protective Field Height: 450 mm
Operating Range: up to 12 m
Safety Interface: 2 × PNP OSSD outputs (safety outputs)
Power Supply: 24 V DC ±20%
Response Time: approx. 10–20 ms
Protection Rating: IP65 / IP67
Operating Temperature: -10°C … +55°C
Standards:

• EN 61496-1, Type 2
• SIL 1 (EN 61508)
• SILCL 1 (EN 62061)
• PL c, Cat. 2 (EN ISO 13849-1)

Included in the set:

• TX → emitter
• RX → receiver
  Both units are equipped with M12 output connectors

Applications for SAFEeasy SG2 series light curtains:

• Securing hazardous zones in machinery (e.g., presses, robots, automated assembly)
• Protecting operator access to working areas
• Production lines and assembly stations with medium risk (PL c / Cat. 2)
