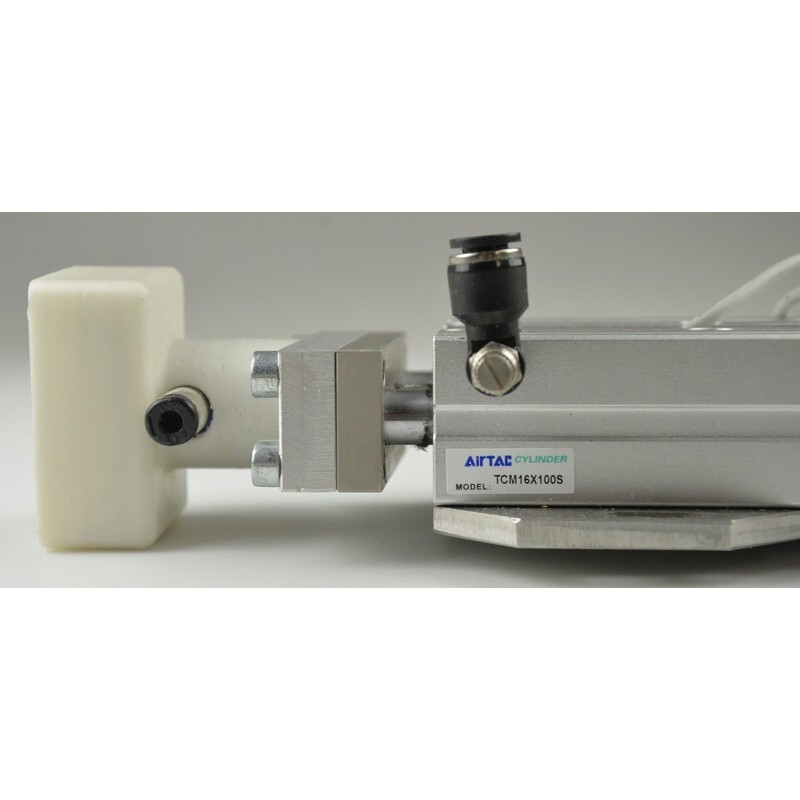

Airtac TCM16X100S Guided Air Cylinder, Dual Rod

Airtac TCM16X100S Guided Air Cylinder, Dual Rod

A compact double‑acting guided pneumatic cylinder with dual rods for enhanced stability and load resistance. It includes a magnet for position sensing and is designed to resist rotation and radial loads.

Mechanical & Pneumatic

• Bore diameter: 16 mm
• Stroke length: 100 mm
• Action type: Double acting
• Guide type: Dual rod (guides integrated into barrel) – prevents rotation and handles radial loads
• Magnet for sensing: Yes (magnetic piston for switch mounting)
• Operating pressure range: ~0.15 – 1.0 MPa (≈ 22 – 145 psi)
• Proof pressure: ~1.5 MPa (215 psi)
• Fluid: Filtered compressed air (recommended filtration ≤ 40 µm)

Performance

• Speed range: approx. 30 – 500 mm/s
• Stroke tolerance: ~ +0 / +1.0 mm for standard strokes
• Operating temperature: approx. -20 °C to +70 °C

Construction

• Body material: lightweight aluminum alloy
• Bearing type: bronze sliding bearings
• Thread type: M5

Features & Benefits

• Guided dual‑rod design: higher torque and radial load resistance compared with non‑guided cylinders.
• Integrated magnet & switch slots: allows easy installation of magnetic position sensors.
• Compact footprint: guide unit and cylinder body integrated into a single barrel.
• Multi‑mount capability: features provisions for mounting in multiple orientations.
