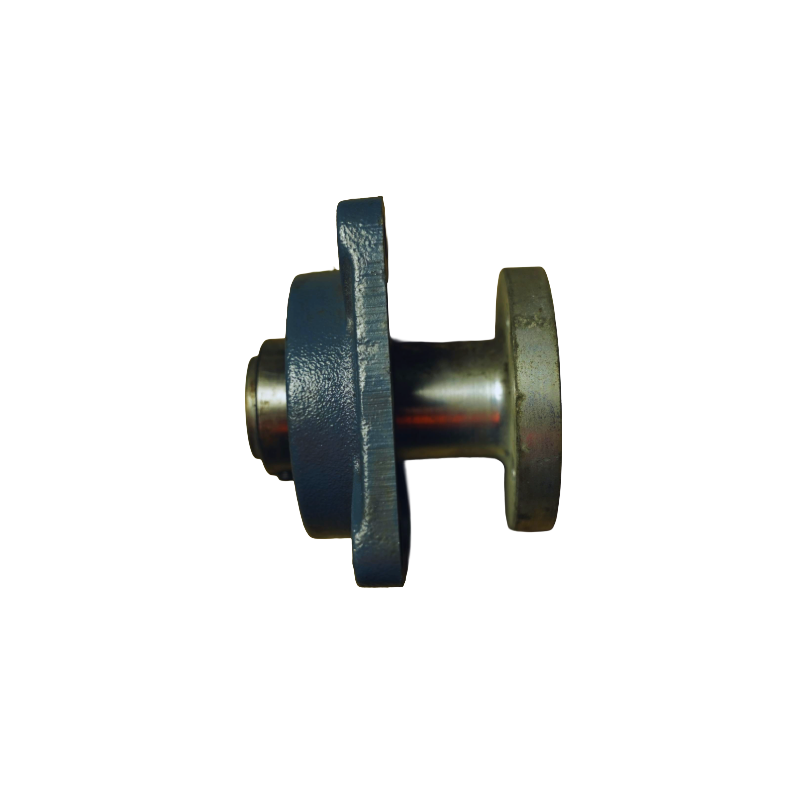

Łożysko samonastawne Koyo U0208/F208 z oprawą kołnierzową

KOYO F208 – Flange Bearing Unit (4-Bolt)

The KOYO F208 is a robust 4-bolt flange bearing unit, equipped with a self-aligning UC208 bearing insert designed for a 40 mm shaft. The cast iron, heavy-duty housing provides high rigidity, stability, and resistance to radial and shock loads. The bearing includes a locking collar with two screws and a grease nipple, facilitating maintenance.

Technical Data:

• Manufacturer: KOYO
• Housing Model: F208
• Type: 4-bolt flange bearing
• Shaft Diameter: 40 mm
• Bearing Insert: UC208 (self-aligning)
• Housing Material: Cast Iron
• Mounting Hole Distance (square): approx. 116 mm
• Mounting Hole Diameter: 14 mm
• Total Height: approx. 40–45 mm
• Lubrication: grease nipple
• Condition: used / very good (default – can be changed)

Applications:

• Heavy and medium industrial machinery
• Conveyors and transport lines
• Fans, blowers, drive systems
• Agricultural machinery
• Shaft support in constructions requiring stable mounting
