Łożysko z obudową NSK P206

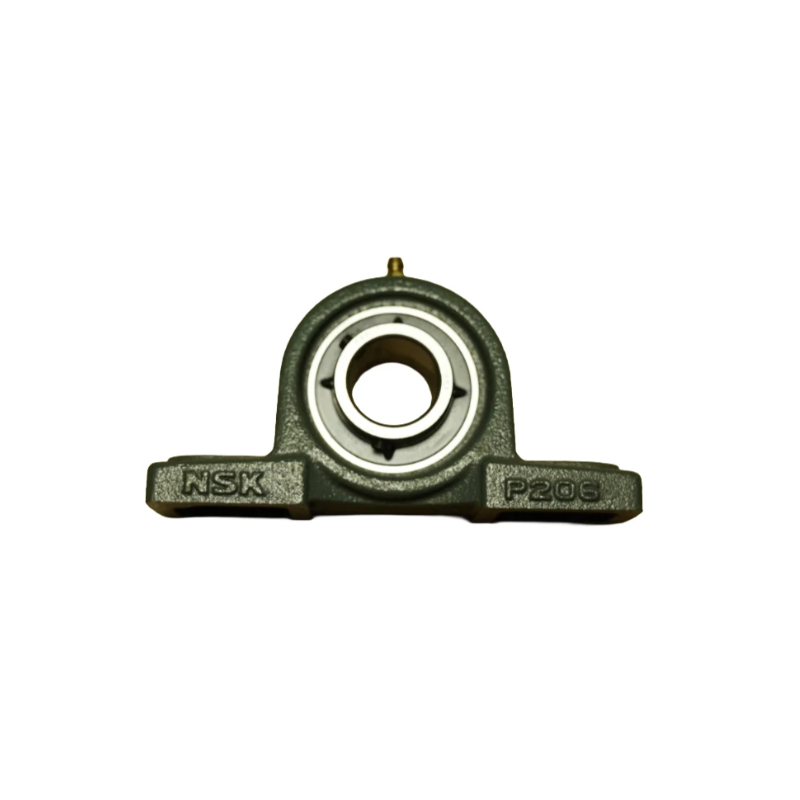

NSK P206 – Pillow Block Bearing Unit

The NSK P206 is a compact pillow block housing equipped with a self-aligning insert bearing UC206 for a 30 mm shaft. Its cast-iron body provides stable shaft support and good resistance to radial loads. The bearing includes a grease nipple and a locking collar with two set screws.

Specifications:

• Manufacturer: NSK
• Housing model: P206
• Type: pillow block
• Shaft diameter: 30 mm
• Insert bearing: UC206 (self-aligning)
• Housing material: cast iron
• Overall length (L): approx. 140 mm
• Mounting hole distance (J): approx. 102 mm
• Height to shaft center (H): approx. 38.1 mm
• Mounting hole diameter (N): 12 mm
• Lubrication: grease nipple
• Condition: used / very good

Applications:

• Belt and roller conveyors
• Agricultural machinery
• Fans and blowers
• Light and medium industrial equipment
• Support for drive and rotating shafts
