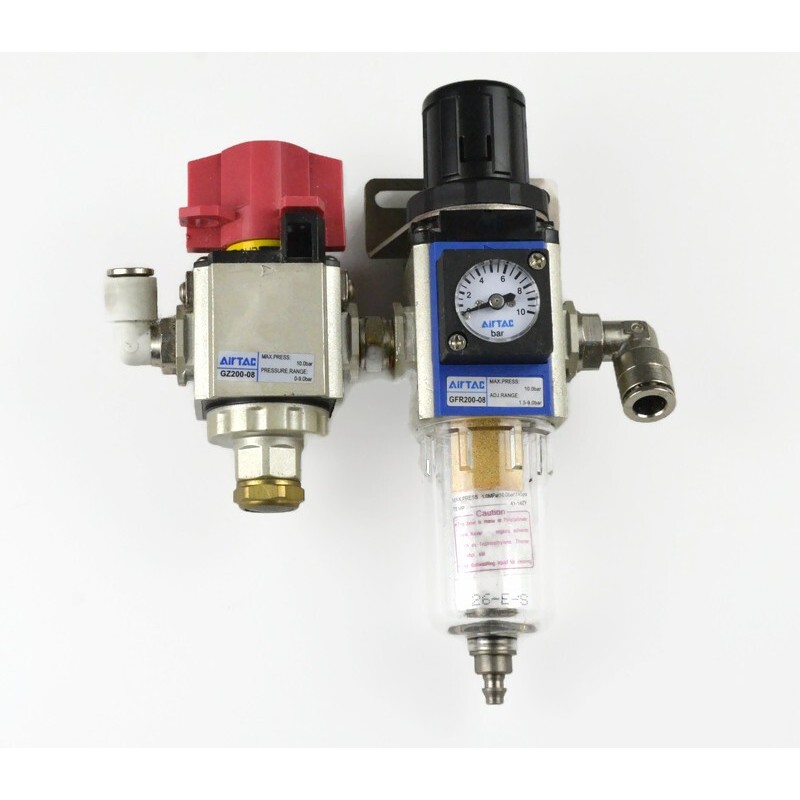

Airtac GFR 200-08 air preparation unit with shut-off valve

Airtac GFR 200-08 air preparation unit with shut-off valve

Technical data of the filter-regulator:

• Application: compressed air treatment – filtration and pressure regulation
• Port size: PT1/4″ (BSPP ≈ G1/4)
• Filtration: 5 µm or 40 µm (optional)
• Pressure regulation range: ~0.05–0.9 MPa (7–130 psi)
• Maximum pressure: 1.0 MPa (145 psi)
• Test pressure: 1.5 MPa (215 psi)
• Operating temperature: ~-5 °C to +70 °C (no freezing)
• Drain bowl capacity: ~40 cm³ (for GFR200-08)
• Materials: body – aluminum/alloy; filter bowl – PC

Technical data – shut-off valve:

• Name: 3/2 shut-off valve
• Manufacturer: AIRTAC
• Model: GZ200-08G
• Air connection: 1/4 inch (thread diameter 11.40–11.90 mm)
• Exhaust connection: 1/4 inch (thread diameter 11.40–11.90 mm)
• Function: 3/2
• Operating pressure: up to 10 bar
