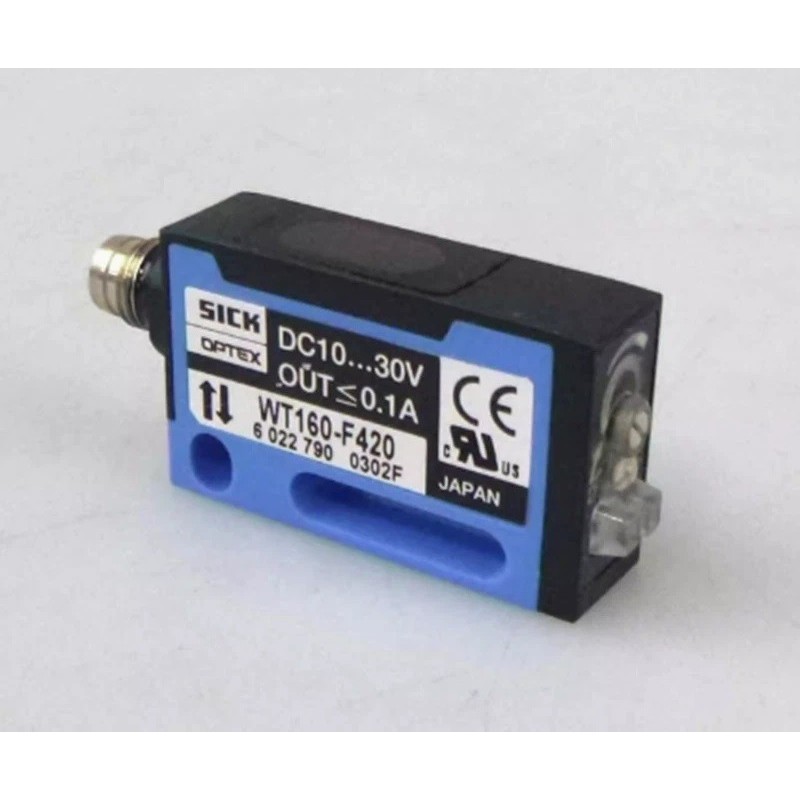

Sick WT160-F420 Photoelectric Sensor

Sick WT160-F420 (G1/135) Photoelectric Sensor

Product features:

• Sensing range min ... max: 4 mm ... 60 mm, 8 mm ... 50 mm
• Light source: LED
• Type of light: Red light
• Light spot diameter: Approx. 3 mm at 25 mm distance
• Laser: Red light
• Sensing range max: 4 mm ... 60 mm, 8 mm ... 50 mm
• Adjustment: Potentiometer, 2 rotations
• Wavelength: 680 nm

Technical data:

Dimensions (W x H x D): 11 mm x 38 mm x 23 mm
Supply voltage min ... max: DC 10 ... 30 V 1)
Residual ripple: ± 10 %
Power consumption: ≤ 25 mA
Output type: PNP: open collector: Q
Switching mode: Light-/dark-switching via rotary switch
Output current max.: 100 mA
Response time: ≤ 0.5 ms
Switching frequency: 1,000 Hz
Connection type: Connector, M8, 4-pin
Circuit protection: VS connections reverse-polarity protected / In-/outputs short-circuit protected / Interference suppression / Outputs overcurrent and short-circuit protected
Enclosure rating: IP 67: EN 60529, IP 69K: EN 40050
Ambient operation temperature, min ... max: -25 °C ... +55 °C
Ambient storage temperature, min ... max: -40 °C ... +70 °C
Weight: Ca. 20 g
Housing material: PBT
Signal voltage PNP HIGH / LOW: Vs - 1.8 V / approx. 0 V
Series: W160
Optics material: PMMA
Housing design: Vertical
