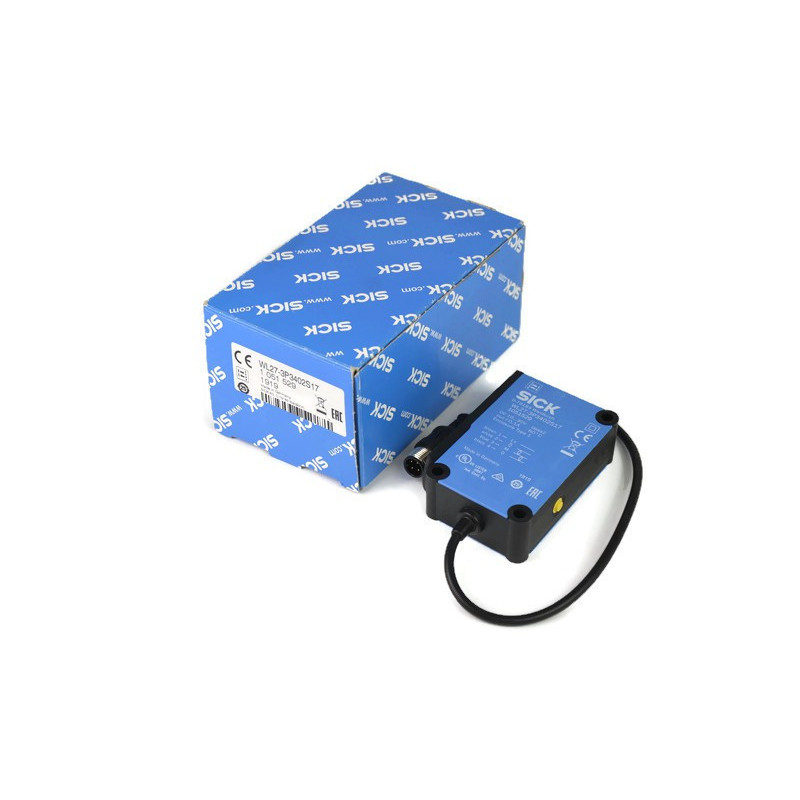

Sick WL27-3P3402S17 PHOTOELECTRIC SENSOR

Sick WL27-3P3402S17 PHOTOELECTRIC SENSOR

• Supply voltage:    10 V DC ... 30 V DC 1)
• Ripple:    ≤ 5 Vpp 2)
• Power consumption:    ≤ 35 mA 3)
• Switching output:    PNP
• Output function:    Complementary
• Switching mode:    Light/dark-switching
• Signal voltage PNP HIGH / LOW:    Approx. VS - 2.5 V / 0 V
• Output current Imax.:    ≤ 100 mA
• Response time:    ≤ 2.5 ms 4)
• Switching frequency:    200 Hz 5)
• Connection type:    Cable with connector M12, 4-pin, 270 mm 6)
• Cable material:    PVC
• Circuit protection:    A, B, C 7) 8) 9)
• Protection class:    II 10
• Weight:    130 g
