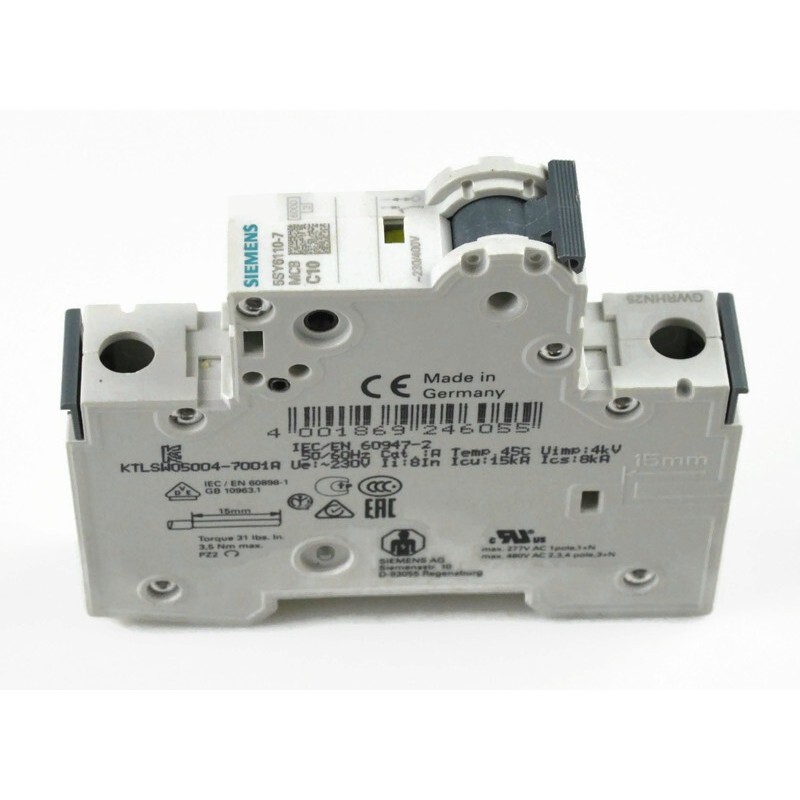

Siemens 5SY6110-7 overcurrent circuit breaker (MCB) C10

Siemens 5SY6110-7 overcurrent circuit breaker (MCB) C10

Overcurrent circuit breaker 5SY6110-7, 400 V, 6 kA, 1-pole, C10 A

• Manufacturer: Siemens
• Protection type: Overcurrent circuit breaker (MCB)
• Series: 5SY6
• Rated voltage: 230/400 V AC
• Rated current: 10 A
• Tripping characteristic: C
• Number of poles: 1
• Breaking capacity (Icn): 6 kA (EN 60898)
• Degree of protection: IP20
• Mounting: DIN rail
• Conductor cross-section: ~0.75–35 mm²
• Operating temperature: -25…+55 °C
• Insulation voltage (Ui): 440 V
• Impulse withstand voltage (Uimp): 4 kV
• Energy-limiting class: 3
• Mounting depth: 70 mm
• Mechanical endurance: approx. 10,000 cycles
