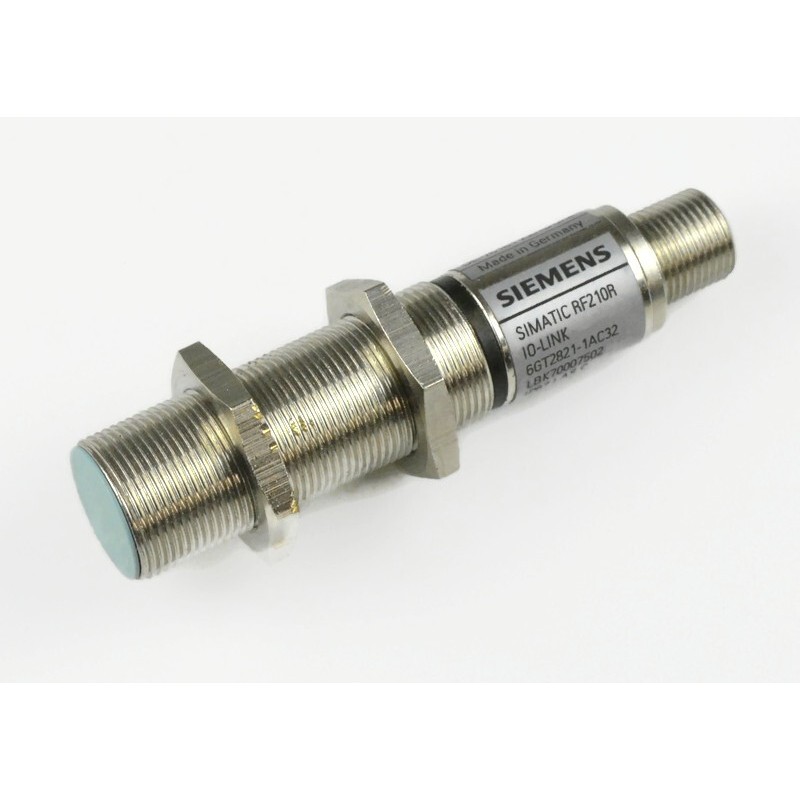

Siemens 6GT2821‑1AC32 SIMATIC RF200 Reader RF210R IO‑Link

Siemens 6GT2821‑1AC32 SIMATIC RF200 Reader RF210R IO‑Link

Basic Data

Model name: SIMATIC RF200 Reader RF210R IO-Link
Catalog number: 6GT2821-1AC32
Device type: RFID reader with IO-Link interface
Interface: IO-Link (communication with IO-Link master)

RF / RFID Data

Operating frequency: 13.56 MHz
RFID protocols: ISO 15693, ISO 18000-3
Integrated antenna: Yes
Max. distance from tag/transponder: approx. 20 mm (depending on transponder type)
I/O data: 8 bytes input + 8 bytes output

Power Supply and Interface

Supply voltage: 24 V DC
Current consumption: ~50 mA at 24 V DC
Connector: M12, 4-pin (IO-Link)

Housing and Operating Environment

Degree of protection: IP67 (dust- and water-resistant)
Operating temperature range: –25 °C to +70 °C
Dimensions: Ø 18 mm × 83 mm (M18)
Housing material: Nickel-plated brass / PBT

IO-Link Communication

IO-Link transmission rate: up to 38.4 kbit/s (depending on version)
IO-Link process data: UID and user data processing via IO-Link master

Application

Application: RFID identification in industrial automation, integration with PLC via IO-Link
