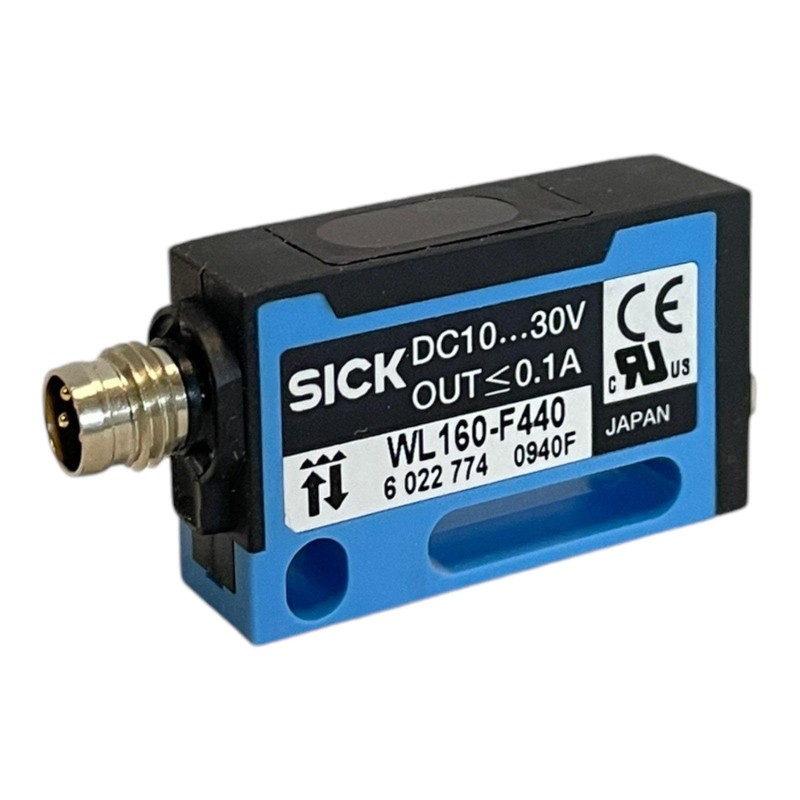

Sick WL160-F440 Reflective Sensor
zł165.00 brutto
134.15 tax excl.
14 dni na zwrot
Odstapienie od umowy w terminie do 14 dni bez podawania powodu
Szybka wysyłka
Przedmioty dostępne na magazynie wysyłamy w dni robocze w przeciągu 24 godzin
Reflective photorelay from the German company Sick. In reflective sensors, both the transmitter and receiver are housed in a single unit, with the light being reflected off a reflective element. When the light beam is interrupted, the sensor activates.
Sick WL160-F440 Reflective Sensor
Features:
- Sensor operating principle / detection principle: Reflective photoelectric sensor
- Dimensions (width x height x depth): 11 mm x 38 mm x 23 mm
- Housing shape (light beam output): Rectangular
- Maximum detection range: 0.01 m ... 6.5 m 1)
- Detection range: 0.01 m ... 4.5 m 1)
- Type of light: Visible red light
- Light source: LED
- Wavelength: 680 nm
Mechanics/electrics:
- Supply voltage: 10 V DC ... 30 V DC
- Residual ripple: ± 10 %
- Current consumption: 25 mA 1)
- Switching output: PNP
- Switching mode: Light/dark switching
- Output function selection: Selectable via light/dark switch
- Response time: ≤ 0.5 ms 2)
- Connector type: M8 plug, 4-pin
- Housing material: Plastic, PBT
- Optical system material: Plastic, PMMA
- Protection rating: IP67
- Ambient temperature during operation: -25 °C ... +55 °C
CZF006
1 Item
Data sheet
- Libra
- 130g
Used
Download
Sick WL160-F440 data sheet
Download (328.53KB)
Reflective photorelay from the German company Sick. In reflective sensors, both the transmitter and receiver are housed in a single unit, with the light being reflected off a reflective element. When the light beam is interrupted, the sensor activates.
