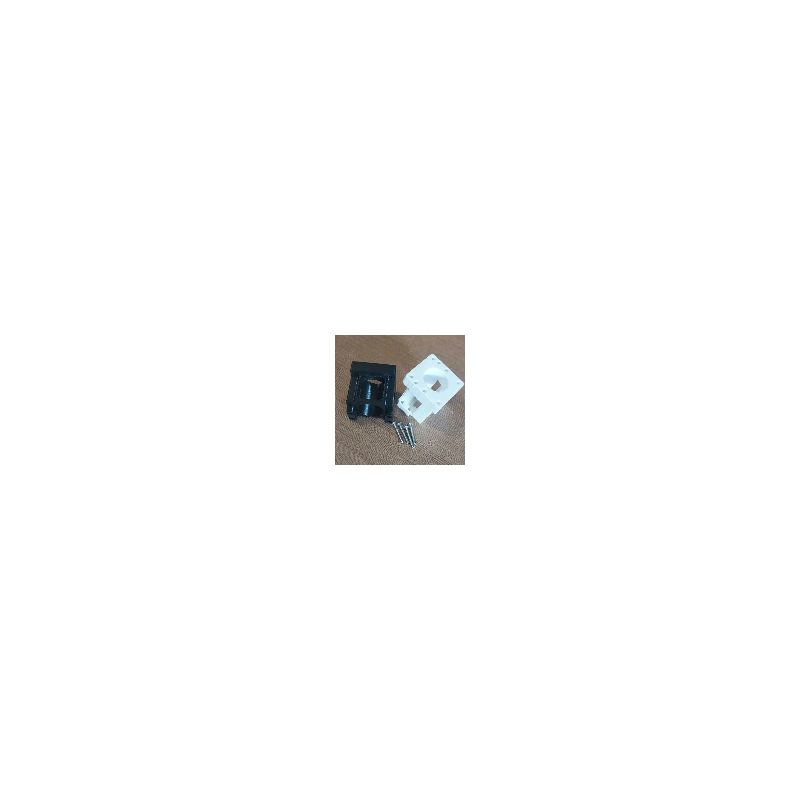

Plastic Mounting Bracket for NEMA 17 Motor

Plastic Mounting Bracket for NEMA 17 Motor

• Compatible with the THK KR20 Linear Guide
• Motor mounting hole spacing: 25 mm horizontally and 14.5 mm vertically
• Cage material: PA12 – 3D-printed plastic

Includes 4 mounting screws.

The design and manufacturing are our own work, developed by the engineers at B3D. We have adapted the THK KR20 linear guide, which originally came without a motor mounting cage, by designing and installing a dedicated motor mounting bracket.

The motor mounting cage is made of high-quality, durable PA12 plastic. The motor mounting dimensions and the distances between the motor and the shaft have been preserved and remain consistent with the original specifications.
