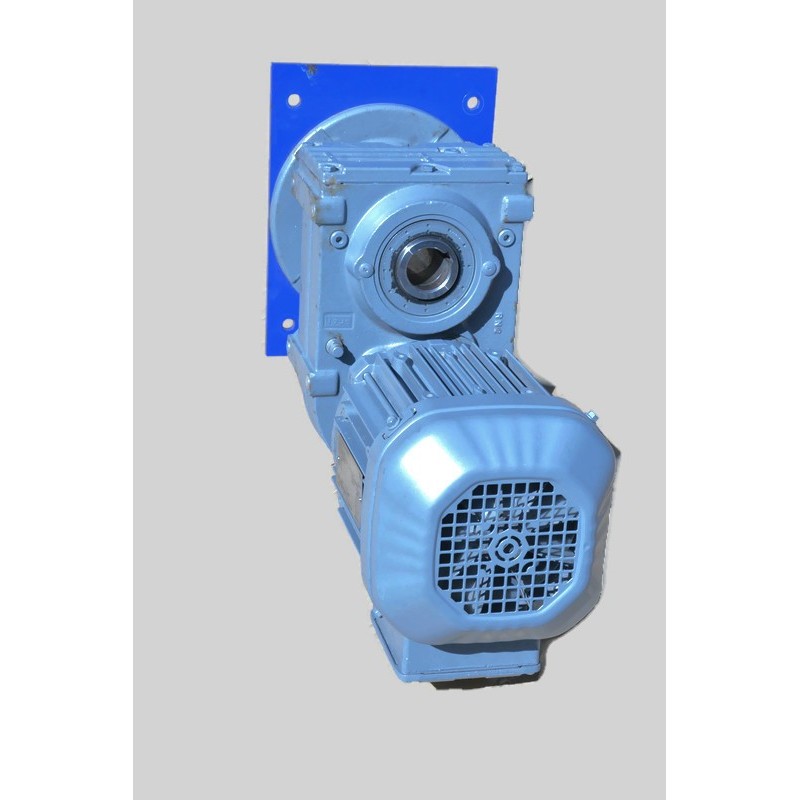

SEW Eurodrive FAF47 DRE90M4

SEW Eurodrive FAF47 DRE90M4

Parallel-shaft helical gear unit (FAF47) combined with a three-phase asynchronous 4-pole motor in frame size 90M (DRE90M4)

Technical Data

• Manufacturer: SEW-Eurodrive
• Series / type: FAF47 / F-series, parallel-shaft helical gear unit
• Motor frame (Frame): 90M – standard IEC frame size for 3-phase, 4-pole motors, typically rated around 1.1–1.5 kW (depending on version)
• Power: approx. 1.1 kW in the typical DRE90M4 motor version (without gearbox)
• Current: approx. 4.70 A / 2.35 A (for 220/440 V, 60 Hz)
• Speed (without gearbox): approx. 1740–1750 rpm at 60 Hz
• Protection / cooling class: IP (typical IEC), IC411 cooling, insulation class F
• F-Series gearbox: FAF47 denotes a parallel-shaft gear unit, size 47; available in many ratios (from approx. 3.77 up to over 280)
• Mounting: flange mounting, foot mounting, with solid shaft or hollow shaft options

Key Features and Benefits

• Power transmission where installation space is limited (F-series is designed for compactness)
• Industrial applications with constant loads (gear unit + motor)
• Conveyors, production lines, and material handling systems
• Applications requiring speed reduction and increased output torque
• Drives for machinery used in processing, packaging, mixing, etc., where the motor and gearbox form a compact drive unit
