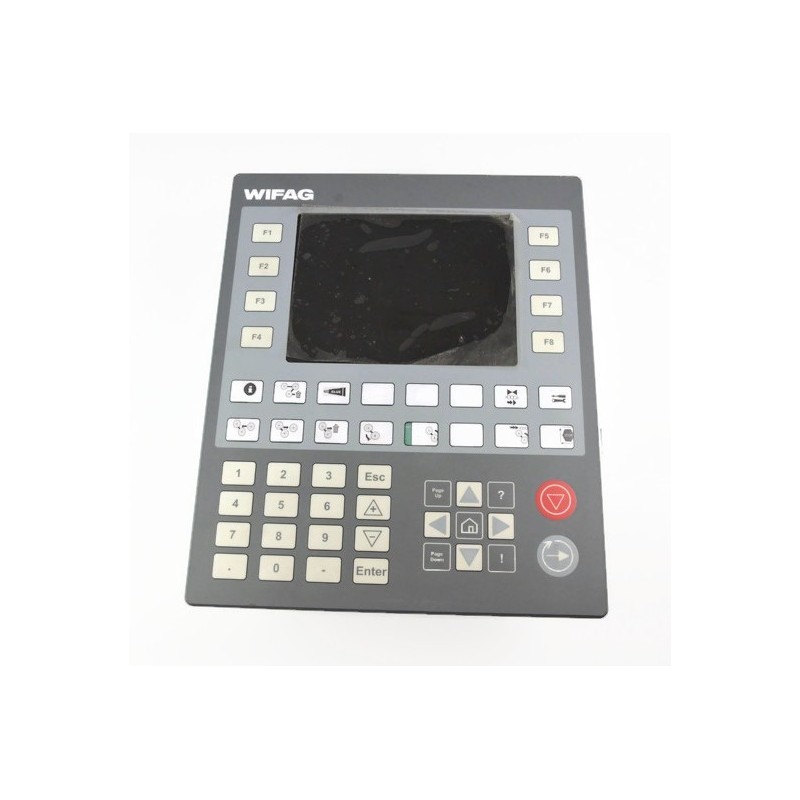

PMI V316 WIFAG Operator Panel 261320 PILZ
zł450.00 brutto
365.85 tax excl.
14 dni na zwrot
Odstapienie od umowy w terminie do 14 dni bez podawania powodu
Szybka wysyłka
Przedmioty dostępne na magazynie wysyłamy w dni robocze w przeciągu 24 godzin
The PMI V316 operator panel is an industrial Human-Machine Interface (HMI) designed for operation in demanding industrial environments. It is used in WIFAG printing machines and is equipped with the PILZ 261320 safety component, making it an integral part of both machine control and safety status monitoring.
PMI V316 WIFAG Operator Panel 261320 PILZ
HMI Panel: PILZ GmbH & Co. KG
Application: Control and safety systems for WIFAG printing machines
Panel Model
- Model: PMI V316
- Catalogue number (safety): 261320 PILZ
- Device type: Operator panel with integrated safety functions
Physical Dimensions and Weight
- Height: 15.0 cm
- Width: 30.0 cm
- Depth: 20.0 cm
- Weight: 3.0 kg
Display and User Interface
- Display type: Color TFT
- Screen size: 7" – 10.4" (depending on the PMI V316 version)
- Resolution: 800 x 600 pixels (or higher, depending on variant)
- Control: Resistive touchscreen
- Additional elements: Physical buttons (in some versions), E-STOP button, LED indicators
Communication and Interfaces
-
Communication ports:
- Ethernet (RJ45)
- USB (Type A/B)
- CAN / Profibus / PROFINET (optional, depending on configuration)
- RS232 / RS485 (for legacy systems)
- PLC compatibility: Capable of integration with WIFAG control systems and other PLCs
- Protocols supported: Compatible with Modbus, OPC UA, and other industrial communication standards
Safety Module – PILZ 261320
- Component type: Safety module (can function as a relay or safety controller)
-
Safety functions:
- Emergency circuit monitoring
- E-STOP support
- Monitoring of safety doors and other sensors
- Classification according to EN ISO 13849-1 (e.g., PL d or PL e)
- Certifications: CE, SIL, TUV
Operating Conditions
- Operating temperature range: 0°C to +50°C
- Humidity: 10% – 90% (non-condensing)
- Protection rating (front): IP65 (dust-tight and resistant to water jets)
- Housing material: Powder-coated aluminum or stainless steel (depending on version)
Power Supply
- Supply voltage: 24 V DC
- Power consumption: Approx. 15–30 W (depending on configuration)
- Protection: Overvoltage protection and EMC filtering
PSP005
4 Items
Used
The PMI V316 operator panel is an industrial Human-Machine Interface (HMI) designed for operation in demanding industrial environments. It is used in WIFAG printing machines and is equipped with the PILZ 261320 safety component, making it an integral part of both machine control and safety status monitoring.
