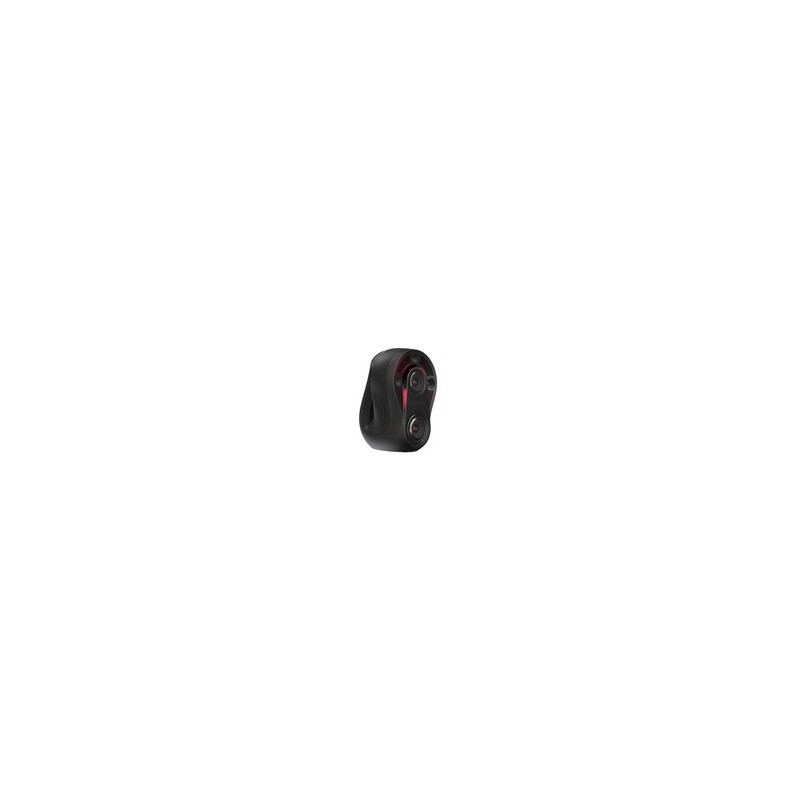

3DMakerpro Whale Scanner

3DMakerpro Whale Scanner

Whale is a 3D scanner that combines the highest level of detail with versatility — thanks to the innovative dual-core solution (micro-core + wide-core), it can handle both intricate details and large-surface scans.

Key features:

• Ultra precision for details – the micro-core achieves an accuracy of 0.05 mm, making it ideal for small objects, mechanical parts, and components used in engineering or prototyping.
• Large-surface scanning – the wide-core covers a large scanning area (530×370 mm), ensuring efficiency when modeling furniture, car bodies, building fragments, and more.
• Marker-free operation – saves time and provides greater convenience.
• Scanning in diverse conditions – performs well in bright light as well as on dark or black surfaces, which are often a challenge for other scanners.
• Complete ecosystem – JMStudio software simplifies data processing, provides texture preview, exports in popular formats (OBJ, STL, PLY, ASC), and supports OTA updates.

Applications:
Whale is suitable wherever precision and detail are required: reverse engineering, quality control, prototyping, art preservation, medical applications (e.g., prosthetics, orthotics, pre-/post-operative analysis), education, animation, and VR/AR.

Technical specifications of the 3DMakerpro Whale 3D scanner

The scanning accuracy is 0.05 mm in micro-core mode and 0.10 mm in wide-core mode. The resolution is 0.20 mm (micro-core) and 0.50 mm (wide-core). The working distance in micro-core mode is 300 ± 100 mm, and in wide-core mode 650 ± 250 mm. The single scan range is 200 × 100 mm (micro-core) and 530 × 370 mm (wide-core).

The scanner operates at approximately 10 frames per second and uses NIR (near-infrared) technology as its light source. Scan alignment is automatic and does not require markers.

The device supports automatic texture mapping, and output formats include OBJ, STL, ASC, and PLY. It is compatible with Windows 10 (64-bit) or later and macOS 12, including Apple devices with M1 processors.

The scanner’s dimensions are 230 × 148 × 188 mm, and it weighs less than 1.5 kg.
